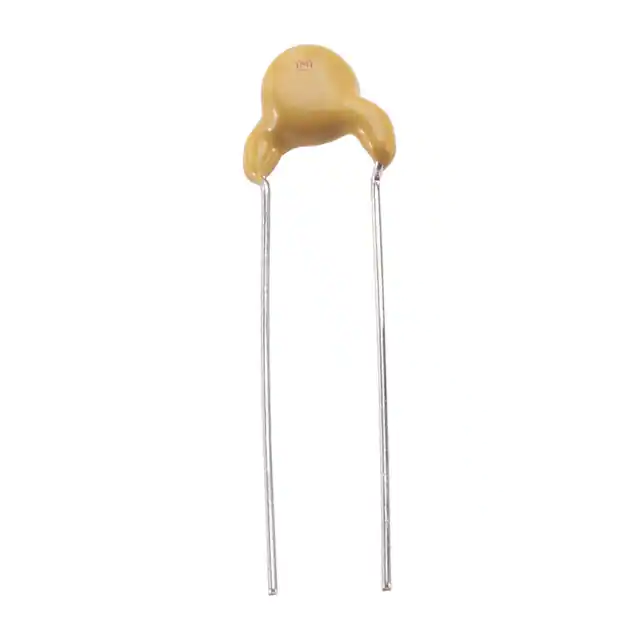

| Part Number | ECK-ATS102ME | ECK-ATS152ME | ECK-ATS102MB |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1500 pF | 1000 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 440VAC | 440VAC | 440VAC |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5P (B) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.354" Dia (9.00mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.571" (14.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
