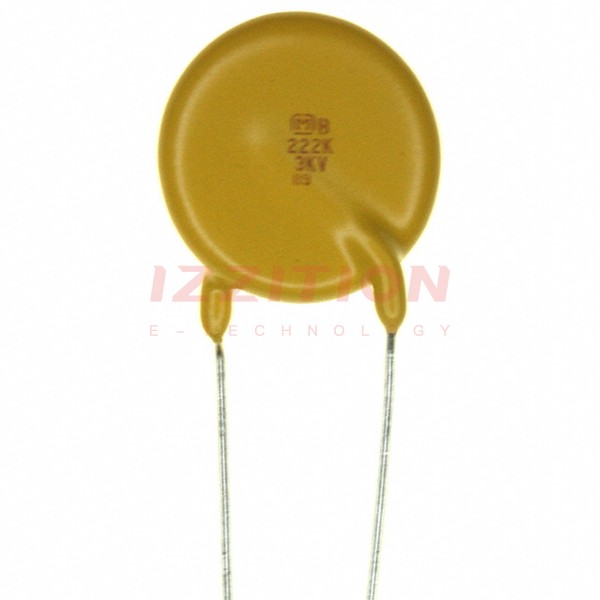

| Part Number | ECK-A3F222KBP | ECK-A3F272KBP | ECK-A3A222KBP | ECK-A3D222KBP | ECK-A3F122KBP | ECK-A3F221KBP |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2200 pF | 2700 pF | 2200 pF | 2200 pF | 1200 pF | 220 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 3000V (3kV) | 3000V (3kV) | 1000V (1kV) | 2000V (2kV) | 3000V (3kV) | 3000V (3kV) |
| Temperature Coefficient | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.669" Dia (17.00mm) | 0.728" Dia (18.50mm) | 0.472" Dia (12.00mm) | 0.551" Dia (14.00mm) | 0.571" Dia (14.50mm) | 0.295" Dia (7.50mm) |
| Height - Seated (Max) | 0.827" (21.00mm) | 0.866" (22.00mm) | 0.630" (16.00mm) | 0.709" (18.00mm) | 0.728" (18.50mm) | 0.453" (11.50mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
