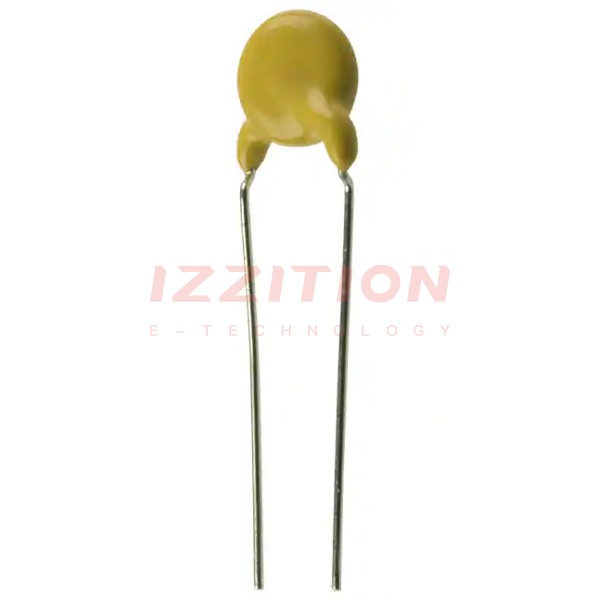

| Part Number | ECK-A3A102KBP | ECK-D3A102KBP | ECK-A3A122KBP | ECK-A3A152KBP | ECK-A3A182KBP | ECK-A3A103KBP | ECK-A3D102KBP | ECK-A3F102KBP | ECK-A3A101KBP |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1000 pF | 1200 pF | 1500 pF | 1800 pF | 10000 pF | 1000 pF | 1000 pF | 100 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 2000V (2kV) | 3000V (3kV) | 1000V (1kV) |
| Temperature Coefficient | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.374" Dia (9.50mm) | 0.394" Dia (10.00mm) | 0.866" Dia (22.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.532" (13.50mm) | 0.551" (14.00mm) | 1.024" (26.00mm) | 0.551" (14.00mm) | 0.650" (16.50mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Straight | Formed Leads | Formed Leads | Straight | Straight | Straight | Straight | Formed Leads |
