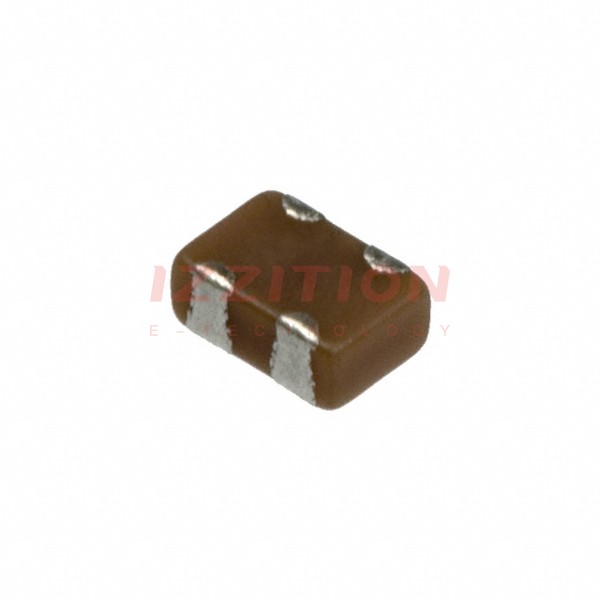

| Part Number | ECJ-UVB0J105M | ECJ-UVBPJ105M | ECJ-RVB0J105M | ECJ-TVB0J105M |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1µF | 1µF | 1µF | 1µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 2 | 2 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X5R | X5R | X5R | X5R |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0504 (1410 Metric) | 0504 (1410 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0405 (1012 Metric) | 0405 (1012 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.035" (0.90mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
