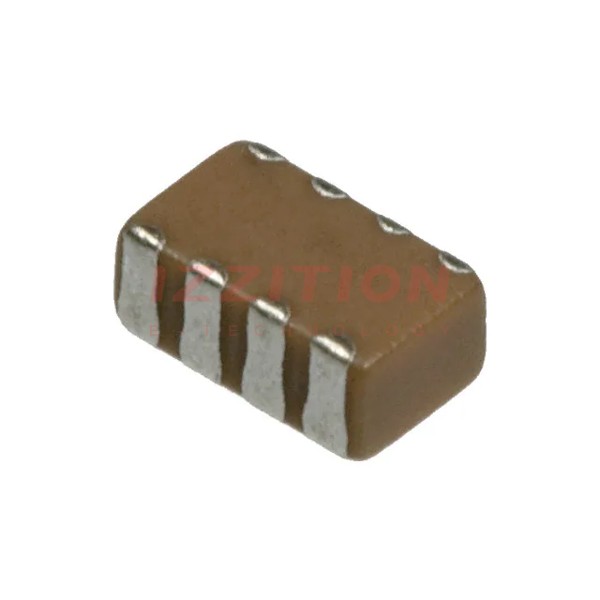

| Part Number | ECJ-TVC1H101K | ECJ-UVC1H101K | ECJ-RVC1H101K |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 100pF | 100pF | 100pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 2 | 4 |
| Circuit Type | Isolated | Isolated | Isolated |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0504 (1410 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0405 (1012 Metric) | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.035" (0.90mm) | 0.037" (0.95mm) |
