Please send RFQ , we will respond immediately.

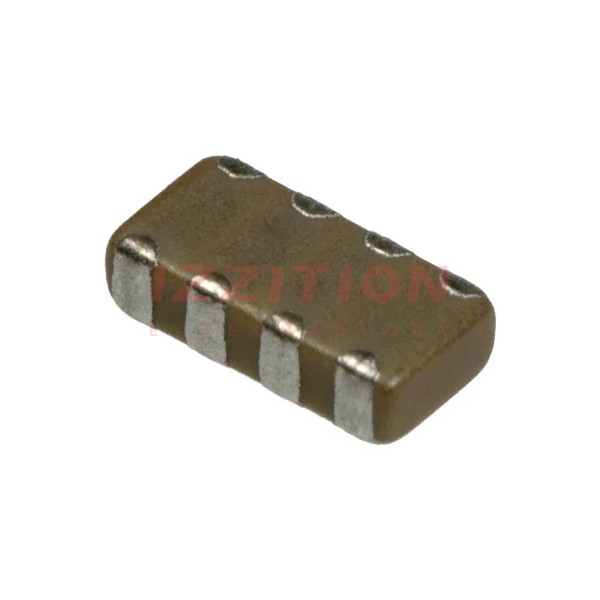

| Part Number | ECJ-RVC1H331K | ECJ-RVC1H391K | ECJ-RVC1H330K |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 330pF | 390pF | 33pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 (3216 Metric) | - | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
