Please send RFQ , we will respond immediately.

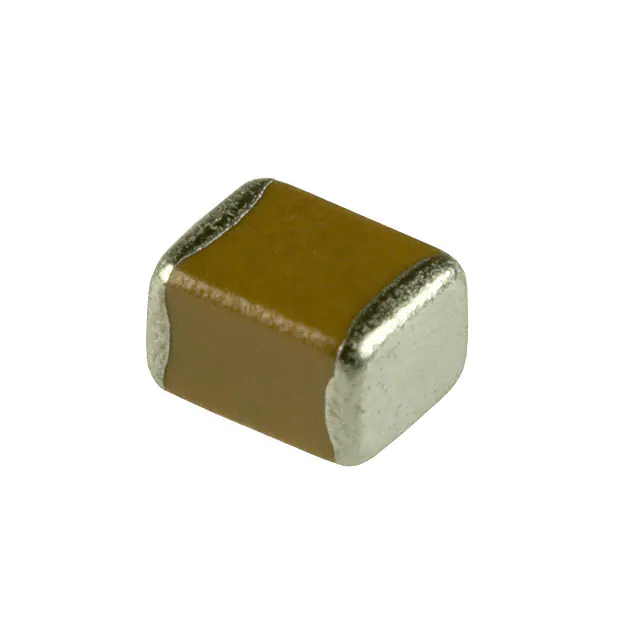

| Part Number | ECJ-4YB1C226M | ECJ-5YB1C226M | ECJ-4YB1E226M | ECJ-3YB1C226M | ECJ-4YB1A226M |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16V | 16V | 25V | 16V | 10V |
| Temperature Coefficient | X5R | X5R | X5R | X5R | X5R |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Features | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) | 1206 (3216 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.098" (2.50mm) | 0.110" (2.80mm) | 0.098" (2.50mm) | 0.071" (1.80mm) | 0.098" (2.50mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
