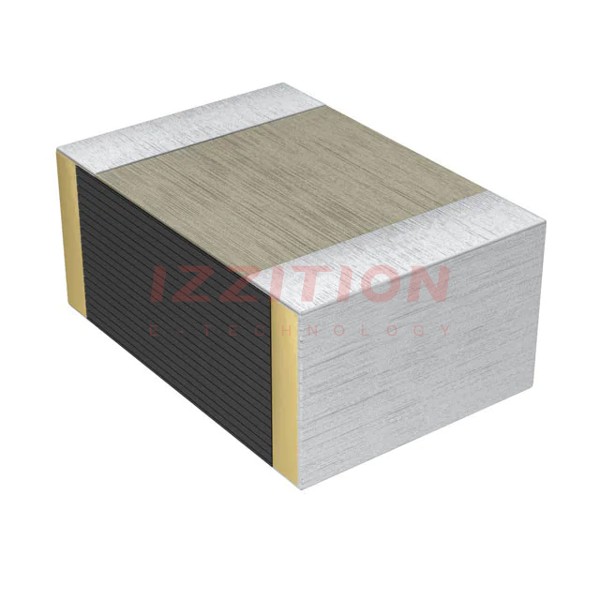

| Part Number | ECH-U1H823JX9 | ECH-U1H823GX9 | ECH-U1H823JC9 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Obsolete |
| Capacitance | 0.082 µF | 0.082 µF | 0.082 µF |
| Tolerance | ±5% | ±2% | ±5% |
| Voltage Rating - AC | 30V | 30V | - |
| Voltage Rating - DC | 50V | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1913 (4833 Metric) | 1913 (4833 Metric) | 1913 (4833 Metric) |
| Size / Dimension | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) |
| Height - Seated (Max) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.102" (2.60mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
