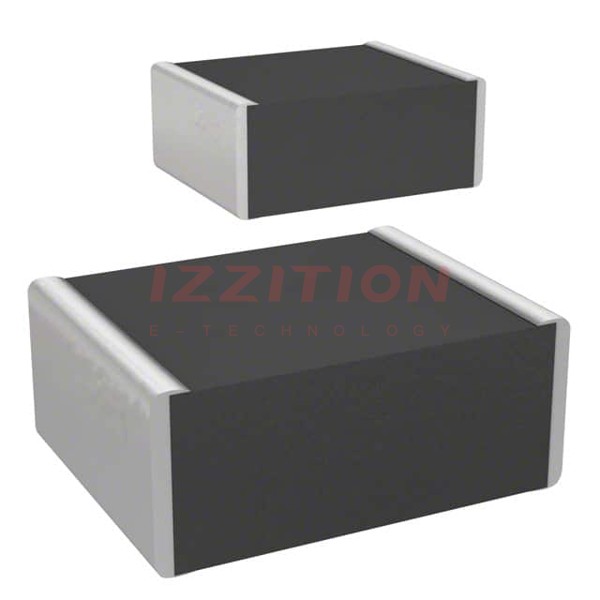

| Part Number | ECH-U1H123JX5 | ECH-U1H223JX5 | ECH-U1H183JX5 | ECH-U1H153JX5 | ECH-U1H103JX5 | ECH-U1H121JX5 | ECH-U1H122JX5 | ECH-U1H123GX5 | ECH-U1H123JB5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.012 µF | 0.022 µF | 0.018 µF | 0.015 µF | 10000 pF | 120 pF | 1200 pF | 0.012 µF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% | ±5% |
| Voltage Rating - AC | 30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.051" (1.30mm) | 0.047" (1.20mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
