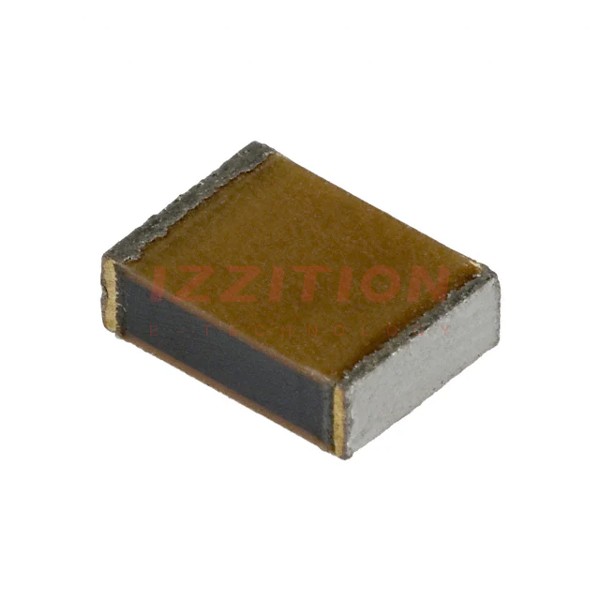

| Part Number | ECH-U1393GC9 | ECH-U1393JC9 | ECH-U1333GC9 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.039 µF | 0.039 µF | 0.033 µF |
| Tolerance | ±2% | ±5% | ±2% |
| Voltage Rating - AC | 40V | - | 40V |
| Voltage Rating - DC | 100V | 100V | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2416 (6041 Metric) | 2416 (6041 Metric) | 2416 (6041 Metric) |
| Size / Dimension | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.236" L x 0.161" W (6.00mm x 4.10mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.079" (2.00mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
