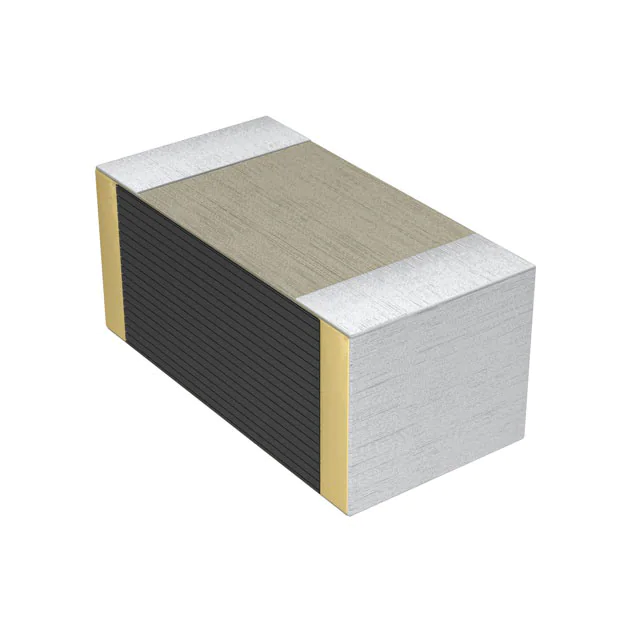

| Part Number | ECH-U01332JX5 | ECH-U01392JX5 | ECH-U01332GX5 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 3300 pF | 3900 pF | 3300 pF |
| Tolerance | ±5% | ±5% | ±2% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 10V | 10V | 10V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
