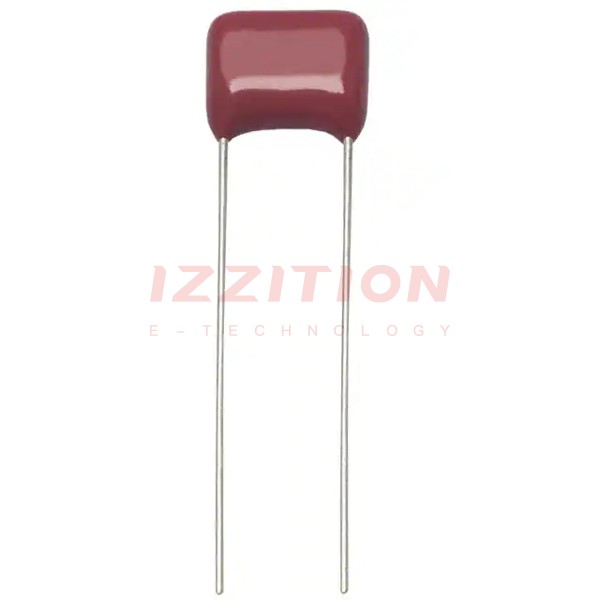

| Part Number | ECH-S1H273GZ | ECH-S1H273JZ | ECH-S1H473GZ | ECH-S1H274GZ | ECH-S1H223GZ | ECH-S1H272GZ |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.027 µF | 0.027 µF | 0.047 µF | 0.27 µF | 0.022 µF | 2700 pF |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.669" L x 0.295" W (17.00mm x 7.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) |
| Height - Seated (Max) | 0.449" (11.40mm) | 0.449" (11.40mm) | 0.465" (11.80mm) | 0.638" (16.20mm) | 0.362" (9.20mm) | 0.346" (8.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.492" (12.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
