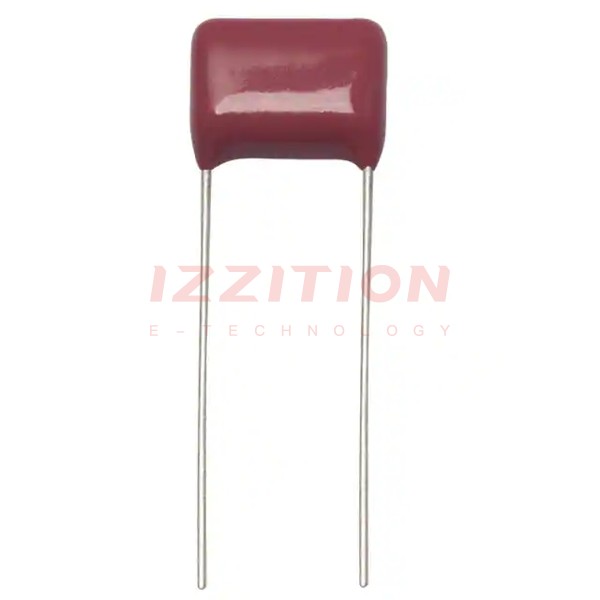

| Part Number | ECH-S1H124JZ | ECH-S1H154JZ | ECH-S1H184JZ | ECH-S1H224JZ | ECH-S1124JZ | ECH-S1H104JZ | ECH-S1H122JZ | ECH-S1H123JZ | ECH-S1H124GZ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.12 µF | 0.15 µF | 0.18 µF | 0.22 µF | 0.12 µF | 0.1 µF | 1200 pF | 0.012 µF | 0.12 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 100V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.571" L x 0.256" W (14.50mm x 6.50mm) | 0.669" L x 0.256" W (17.00mm x 6.50mm) | 0.669" L x 0.256" W (17.00mm x 6.50mm) | 0.669" L x 0.276" W (17.00mm x 7.00mm) | 0.669" L x 0.295" W (17.00mm x 7.50mm) | 0.571" L x 0.236" W (14.50mm x 6.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.571" L x 0.256" W (14.50mm x 6.50mm) |
| Height - Seated (Max) | 0.528" (13.40mm) | 0.528" (13.40mm) | 0.591" (15.00mm) | 0.606" (15.40mm) | 0.622" (15.80mm) | 0.512" (13.00mm) | 0.346" (8.80mm) | 0.354" (9.00mm) | 0.528" (13.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
