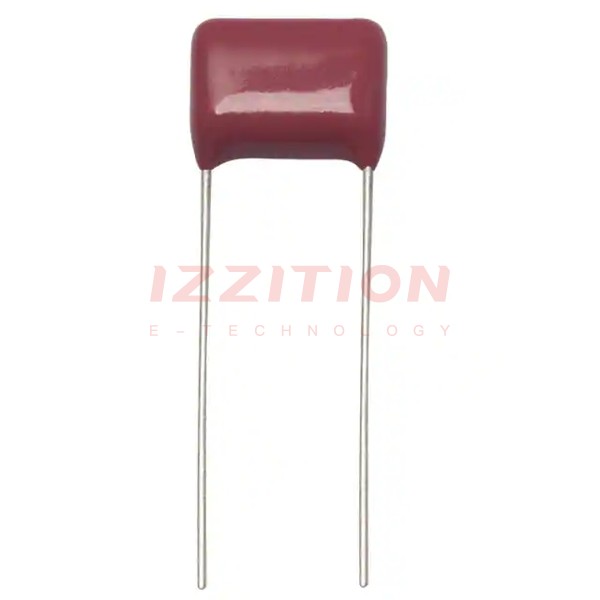

| Part Number | ECH-S1393JZ | ECH-S1394JZ | ECH-S1H393JZ | ECH-S1333JZ | ECH-S1391JZ | ECH-S1392JZ |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.039 µF | 0.39 µF | 0.039 µF | 0.033 µF | 390 pF | 3900 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 50V | 100V | 100V | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.571" L x 0.236" W (14.50mm x 6.00mm) | 0.807" L x 0.413" W (20.50mm x 10.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) |
| Height - Seated (Max) | 0.496" (12.60mm) | 0.795" (20.20mm) | 0.449" (11.40mm) | 0.480" (12.20mm) | 0.295" (7.50mm) | 0.315" (8.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
