Please send RFQ , we will respond immediately.

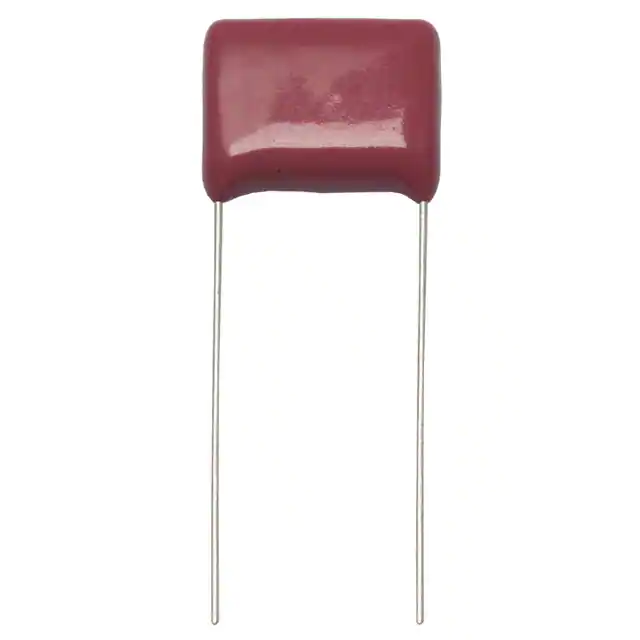

| Part Number | ECH-S1124JZ | ECH-S1154JZ | ECH-S1184JZ | ECH-S1224JZ | ECH-S1H124JZ | ECH-S1104JZ | ECH-S1121JZ | ECH-S1122JZ | ECH-S1123JZ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.12 µF | 0.15 µF | 0.18 µF | 0.22 µF | 0.12 µF | 0.1 µF | 120 pF | 1200 pF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 50V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.669" L x 0.295" W (17.00mm x 7.50mm) | 0.807" L x 0.295" W (20.50mm x 7.50mm) | 0.807" L x 0.295" W (20.50mm x 7.50mm) | 0.807" L x 0.335" W (20.50mm x 8.50mm) | 0.571" L x 0.256" W (14.50mm x 6.50mm) | 0.669" L x 0.276" W (17.00mm x 7.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) |
| Height - Seated (Max) | 0.622" (15.80mm) | 0.630" (16.00mm) | 0.654" (16.60mm) | 0.677" (17.20mm) | 0.528" (13.40mm) | 0.598" (15.20mm) | 0.295" (7.50mm) | 0.315" (8.00mm) | 0.362" (9.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
