Please send RFQ , we will respond immediately.

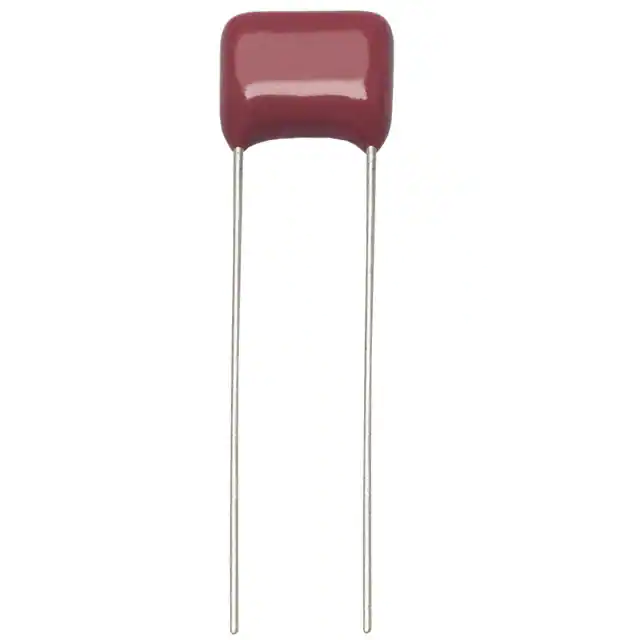

| Part Number | ECH-S1102JZ | ECH-S1122JZ | ECH-S1152JZ | ECH-S1182JZ | ECH-S1103JZ | ECH-S1104JZ | ECH-S1H102JZ | ECH-S1101JZ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1200 pF | 1500 pF | 1800 pF | 10000 pF | 0.1 µF | 1000 pF | 100 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V | 50V | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.669" L x 0.276" W (17.00mm x 7.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) | 0.335" L x 0.157" W (8.50mm x 4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.354" (9.00mm) | 0.598" (15.20mm) | 0.339" (8.60mm) | 0.295" (7.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.492" (12.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
