Please send RFQ , we will respond immediately.

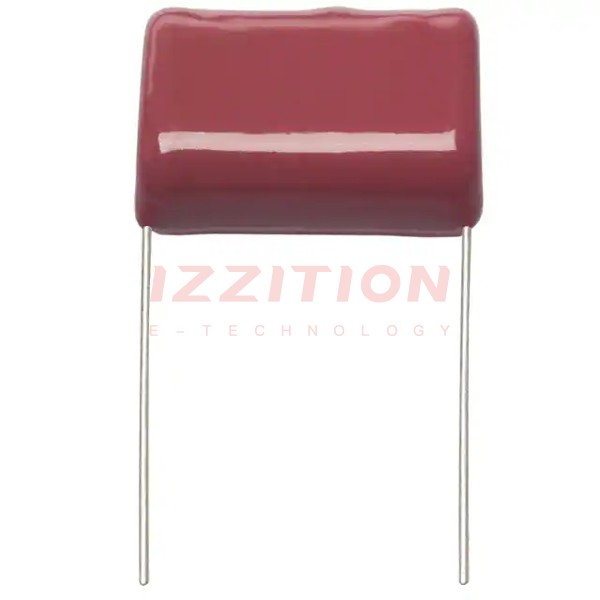

| Part Number | ECH-A25205JX | ECH-A25305JX | ECH-A25405JX | ECH-A25505JX | ECH-A25605JX | ECH-A22205JX | ECH-A25105JX |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2 µF | 3 µF | 4 µF | 5 µF | 6 µF | 2 µF | 1 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | 250V | 220V | 250V |
| Voltage Rating - DC | - | - | - | - | - | - | - |
| Dielectric Material | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.457" L x 0.650" W (37.00mm x 16.50mm) | 1.457" L x 0.768" W (37.00mm x 19.50mm) | 1.594" L x 0.787" W (40.50mm x 20.00mm) | 1.594" L x 0.866" W (40.50mm x 22.00mm) | 1.043" L x 0.551" W (26.50mm x 14.00mm) | 1.043" L x 0.472" W (26.50mm x 12.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 1.102" (28.00mm) | 1.220" (31.00mm) | 1.260" (32.00mm) | 1.339" (34.00mm) | 1.004" (25.50mm) | 0.925" (23.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.280" (32.50mm) | 1.280" (32.50mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
