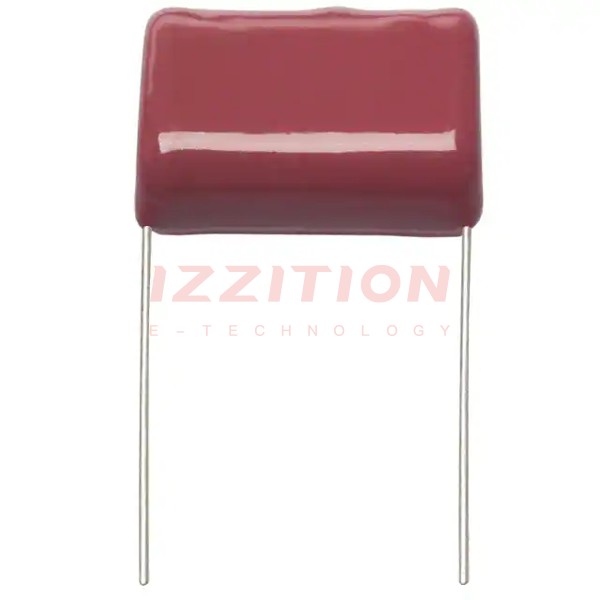

| Part Number | ECH-A18405JX | ECH-A18505JX | ECH-A18605JX | ECH-A18105JX | ECH-A18205JX | ECH-A18305JX |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 4 µF | 5 µF | 6 µF | 1 µF | 2 µF | 3 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 180V | 180V | 180V | 180V | 180V | 180V |
| Voltage Rating - DC | - | - | - | - | - | - |
| Dielectric Material | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.457" L x 0.650" W (37.00mm x 16.50mm) | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 1.043" L x 0.453" W (26.50mm x 11.50mm) | 1.043" L x 0.551" W (26.50mm x 14.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.102" (28.00mm) | 1.083" (27.50mm) | 0.768" (19.50mm) | 0.906" (23.00mm) | 1.024" (26.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.280" (32.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
