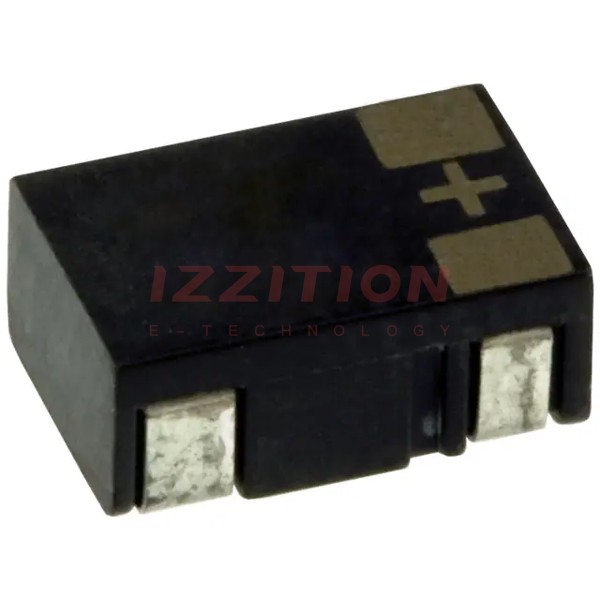

| Part Number | ECG-C0JB220R | ECG-C0KB220R |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Polymer | Polymer |
| Capacitance | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 8 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz | - |
| Impedance | 90 mOhms | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Surface Mount Land Size | 0.311" L x 0.209" W (7.90mm x 5.30mm) | 0.311" L x 0.209" W (7.90mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD |
