ECG-C0JB100R
  • Share:

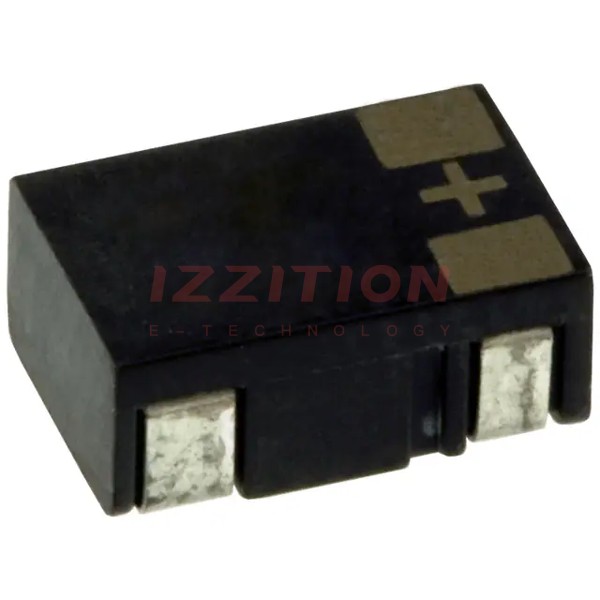

Panasonic Electronic Components ECG-C0JB100R

Manufacturer No:
ECG-C0JB100R
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ECG-C0JB100R Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 10UF 20% 6.3V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:10 µF
Tolerance:±20%
Voltage - Rated:6.3 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:1000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:1 A @ 100 kHz
Impedance:130 mOhms
Lead Spacing:-
Size / Dimension:0.311" L x 0.209" W (7.90mm x 5.30mm)
Height - Seated (Max):0.130" (3.30mm)
Surface Mount Land Size:0.311" L x 0.209" W (7.90mm x 5.30mm)
Mounting Type:Surface Mount
Package / Case:Nonstandard SMD
0 Remaining View Similar

In Stock

-
376

Please send RFQ , we will respond immediately.
