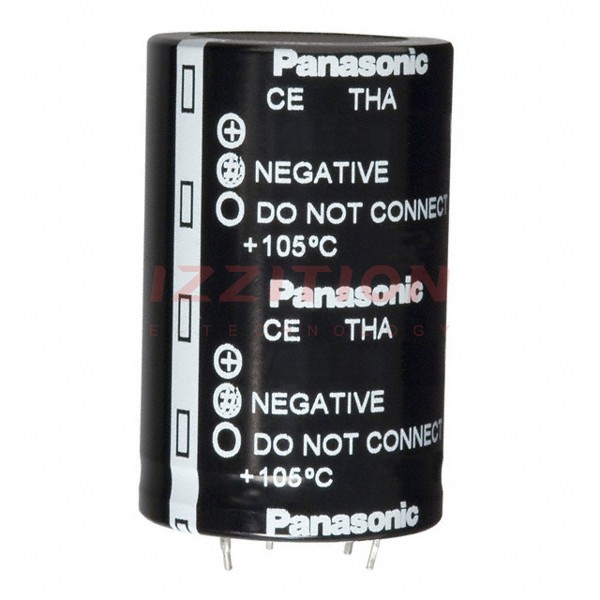

| Part Number | ECE-T2GA102FA | ECE-T2GP102FA | ECE-T2GA122FA | ECE-T2WA102FA | ECE-T2GA182FA | ECE-T2GA102EA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1000 µF | 1200 µF | 1000 µF | 1800 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 400 V | 450 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | 166mOhm | 199mOhm @ 120Hz | 138mOhm | 166mOhm | 101mOhm | 166mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 85°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz | 4.16 A @ 120 Hz | 3.79 A @ 120 Hz | 3.5 A @ 120 Hz | 5.06 A @ 120 Hz | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.2 A @ 10 kHz | 5.824 A @ 10 kHz | 5.306 A @ 10 kHz | 4.9 A @ 10 kHz | 7.084 A @ 10 kHz | 4.2 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.480" (63.00mm) | 2.480" (63.00mm) | 3.150" (80.00mm) | 3.150" (80.00mm) | 4.134" (105.00mm) | 3.150" (80.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead |
