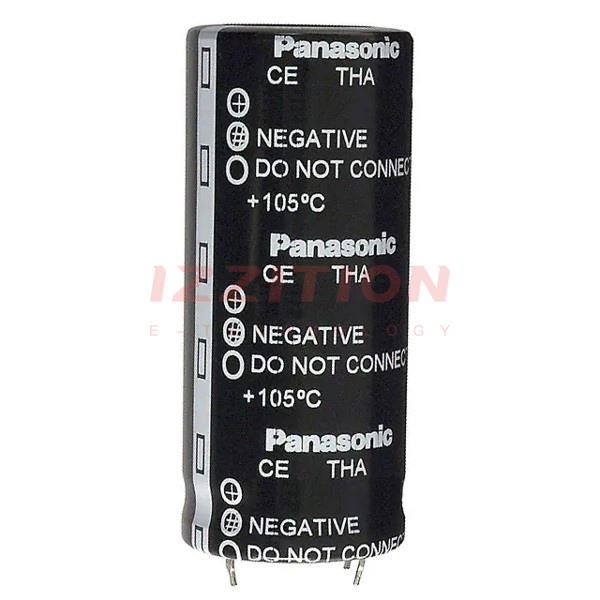

| Part Number | ECE-T1EA563EA | ECE-T1EP563EA | ECE-T1EA563FA | ECE-T1CA563EA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 56000 µF | 56000 µF | 56000 µF | 56000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 16 V |
| ESR (Equivalent Series Resistance) | 15mOhm | 15mOhm @ 120Hz | 14mOhm | 19mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 7.25 A @ 120 Hz | 8.85 A @ 120 Hz | 7.17 A @ 120 Hz | 6 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.338 A @ 10 kHz | 10.18 A @ 10 kHz | 8.246 A @ 10 kHz | 6.9 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) | 2.480" (63.00mm) | 2.480" (63.00mm) | 1.969" (50.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In - 4 Lead |
