Please send RFQ , we will respond immediately.

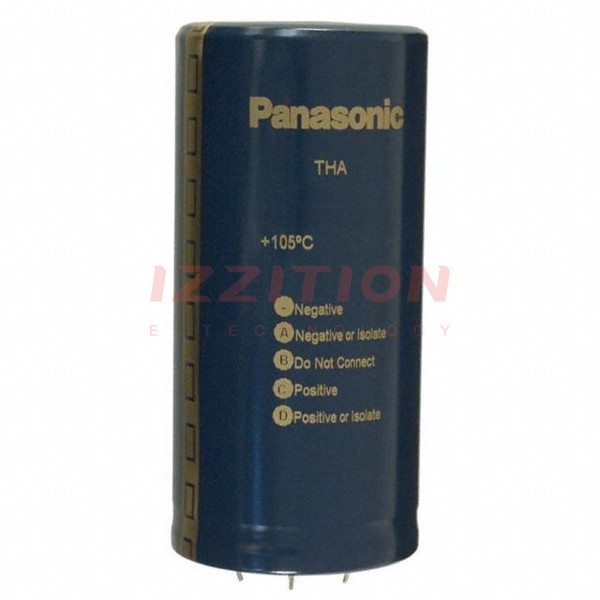

| Part Number | ECE-P2WA152HA | ECE-P2WA182HA | ECE-P2GA152HA | ECE-P2WA102HA | ECE-P2WA122HA | ECE-P2WA132HA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1500 µF | 1800 µF | 1500 µF | 1000 µF | 1200 µF | 1300 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 400 V | 450 V | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | 122mOhm | 101mOhm | 122mOhm | 172mOhm | 152mOhm | 140mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 6.03 A @ 120 Hz | 6.23 A @ 120 Hz | 5.22 A @ 120 Hz | 3.74 A @ 120 Hz | 4.7 A @ 120 Hz | 5.18 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.442 A @ 10 kHz | 8.722 A @ 10 kHz | 7.308 A @ 10 kHz | 5.236 A @ 10 kHz | 6.58 A @ 10 kHz | 7.252 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) | 4.134" (105.00mm) | 3.150" (80.00mm) | 2.480" (63.00mm) | 3.150" (80.00mm) | 3.622" (92.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead |
