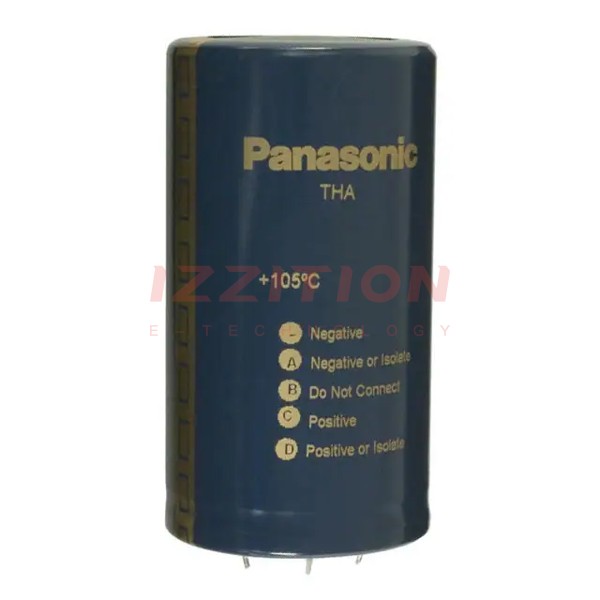

| Part Number | ECE-P2EA432HA | ECE-P2EA332HA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 4300 µF | 3300 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | 50mOhm | 65mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 6.67 A @ 120 Hz | 5.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.338 A @ 10 kHz | 7.672 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.622" (92.00mm) | 2.480" (63.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead |
