Please send RFQ , we will respond immediately.

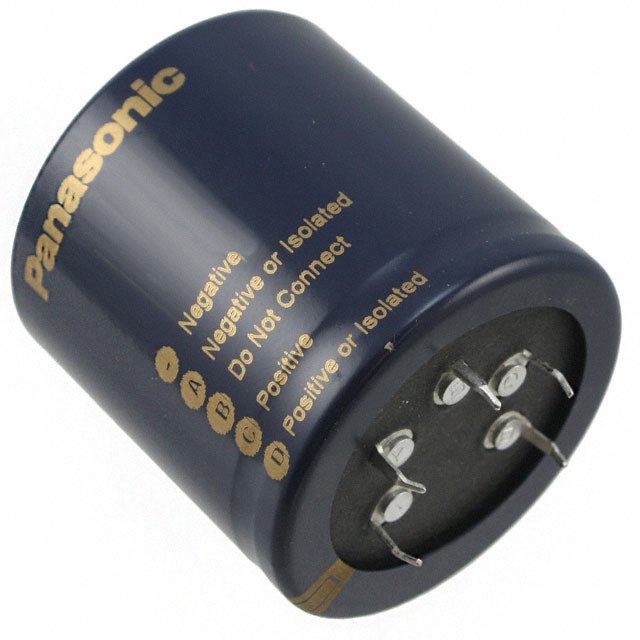

| Part Number | ECE-P1KP183HA | ECE-P1KA183HA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 18000 µF | 18000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 120Hz | 26mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 10 A @ 120 Hz | 7.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.5 A @ 10 kHz | 8.384 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 3.150" (80.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead |
