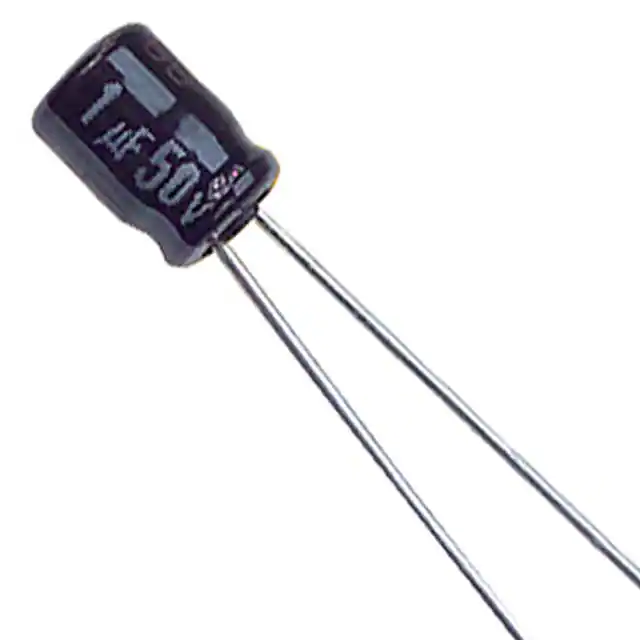

| Part Number | ECE-A1HKS010 | ECE-A1HKS010B | ECE-A1HKS010I | ECE-A1HKA010 | ECE-A1HKG010 | ECE-A1HKK010 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1 µF | 1 µF | 1 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | - | - | - | - | 8 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | 17 mA @ 10 kHz | 16 mA @ 100 kHz | - |
| Impedance | - | - | - | - | 10 Ohms | - |
| Lead Spacing | 0.059" (1.50mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.039" (1.00mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.197" (5.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
