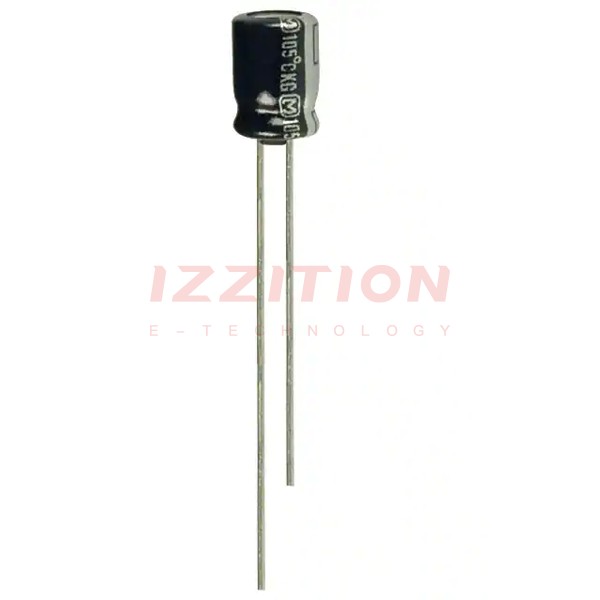

| Part Number | ECE-A1AKG330 | ECE-A1AKS330 | ECE-A1CKG330 | ECE-A1AKA330 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Active |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 43 mA @ 120 Hz | - | 43 mA @ 120 Hz |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz | 73.1 mA @ 100 kHz | 121 mA @ 100 kHz | 73.1 mA @ 10 kHz |
| Impedance | 5 Ohms | - | 2 Ohms | - |
| Lead Spacing | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.098" (2.50mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.197" (5.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
