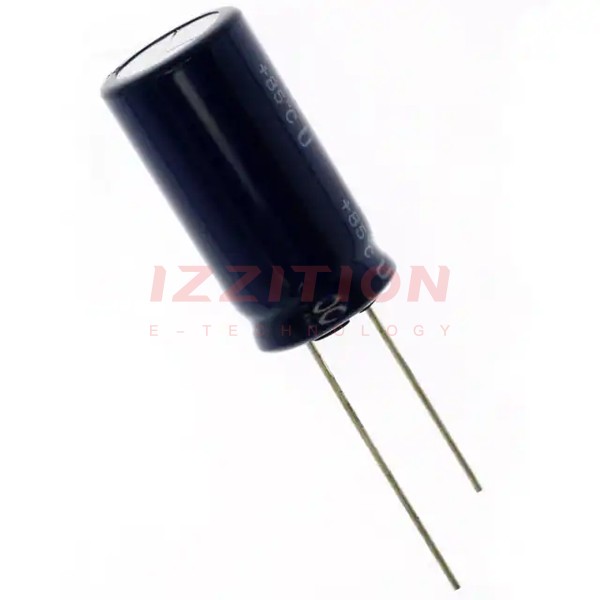

| Part Number | ECE-A0JN472U | ECE-A0JN470U |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 4700 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Bi-Polar | Bi-Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz | - |
| Ripple Current @ High Frequency | 1.989 A @ 10 kHz | 153 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
