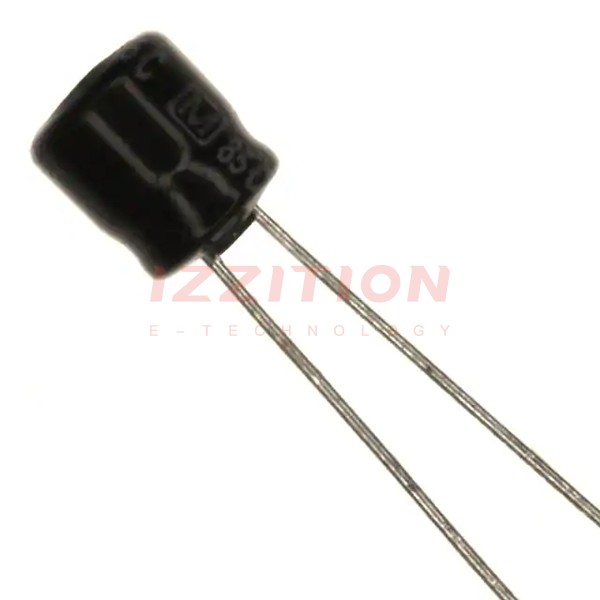

| Part Number | ECE-A0JKS470 | ECE-A0JKS470B | ECE-A0JKS470I | ECE-A0GKS470 | ECE-A0JKA470 | ECE-A0JKG470 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 4 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz | 46 mA @ 120 Hz | 46 mA @ 120 Hz | 34 mA @ 120 Hz | 46 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 78.2 mA @ 100 kHz | - | - | 57.8 mA @ 100 kHz | 78.2 mA @ 10 kHz | 70 mA @ 100 kHz |
| Impedance | - | - | - | - | - | 5 Ohms |
| Lead Spacing | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.197" (5.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
