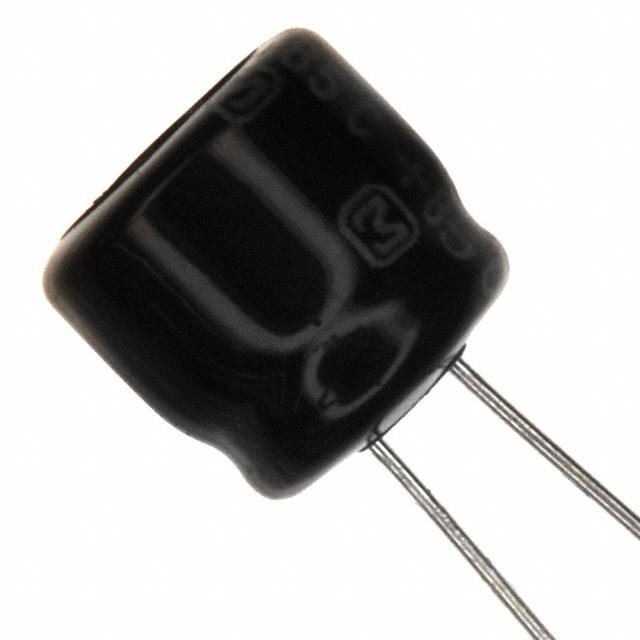

| Part Number | ECE-A0JKA331I | ECE-A0JKS331I | ECE-A0JKA331Q | ECE-A0GKA331I | ECE-A0JKA330I | ECE-A0JKA331 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF | 33 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 4 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz | 130 mA @ 120 Hz | 130 mA @ 120 Hz | 110 mA @ 120 Hz | - | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 221 mA @ 10 kHz | - | 221 mA @ 10 kHz | 187 mA @ 10 kHz | 64.6 mA @ 10 kHz | 221 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | - | 0.098" (2.50mm) | - | 0.098" (2.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.157" Dia (4.00mm) | 0.315" Dia (8.00mm) | - | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.236" (6.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | - | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
