Please send RFQ , we will respond immediately.

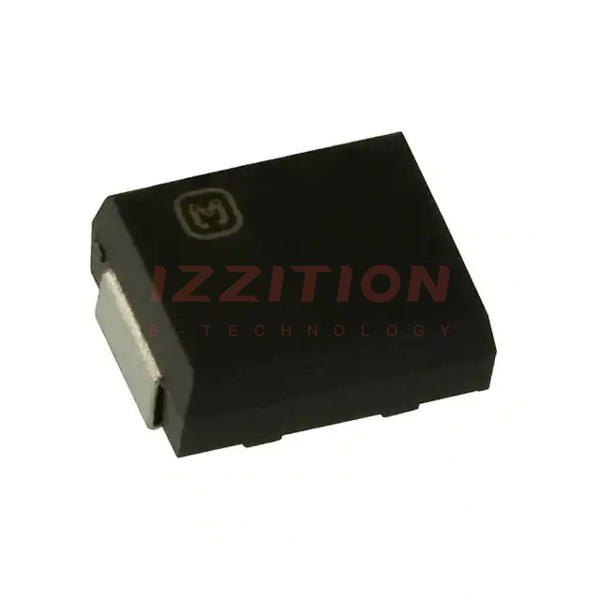

| Part Number | ECC-T3F220JG2 | ECC-T3F270JG2 | ECC-T3G220JG2 | ECC-T3F120JG2 | ECC-T3F220JG |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 22 pF | 27 pF | 22 pF | 12 pF | 22 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 3000V (3kV) | 3000V (3kV) | 4000V (4kV) | 3000V (3kV) | 3000V (3kV) |
| Temperature Coefficient | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Size / Dimension | 0.224" L x 0.177" W (5.70mm x 4.50mm) | 0.224" L x 0.177" W (5.70mm x 4.50mm) | 0.224" L x 0.177" W (5.70mm x 4.50mm) | 0.224" L x 0.177" W (5.70mm x 4.50mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
