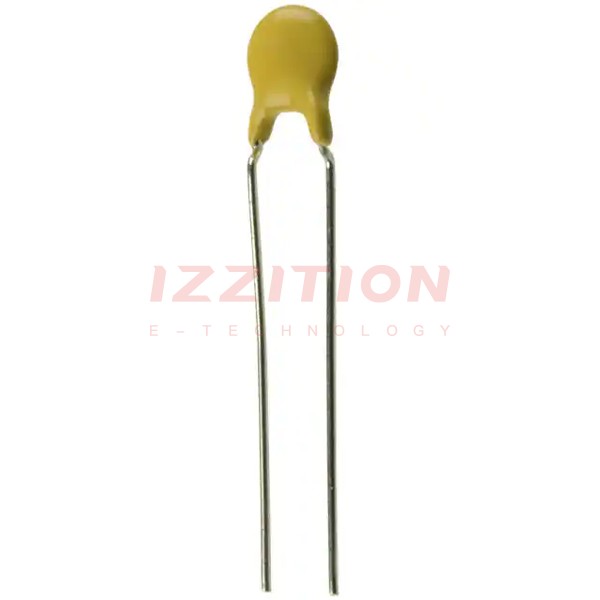

| Part Number | ECC-A3D101JGE | ECC-D3D101JGE | ECC-A3J101JGE | ECC-A3D121JGE | ECC-A3D151JGE | ECC-A3D181JGE | ECC-A3F101JGE | ECC-A3A101JGE |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 pF | 100 pF | 100 pF | 120 pF | 150 pF | 180 pF | 100 pF | 100 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) | 6000V (6kV) | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) | 3000V (3kV) | 1000V (1kV) |
| Temperature Coefficient | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.512" Dia (13.00mm) | 0.315" Dia (8.00mm) | 0.354" Dia (9.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.433" (11.00mm) | 0.669" (17.00mm) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Straight | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Straight | Formed Leads |
