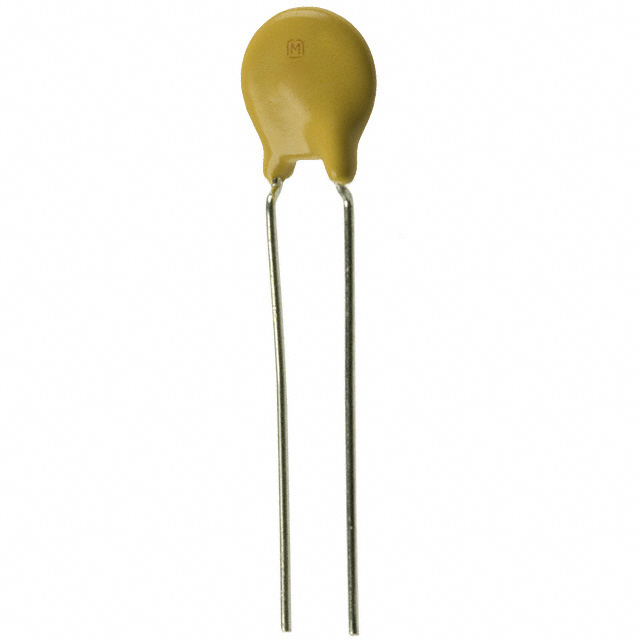

| Part Number | ECC-A3A331JGE | ECC-D3A331JGE | ECC-A3A391JGE | ECC-A3A330JGE |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 pF | 330 pF | 390 pF | 33 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | SL/GP | SL/GP | SL/GP | SL/GP |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.551" (14.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Straight | Formed Leads | Formed Leads |
