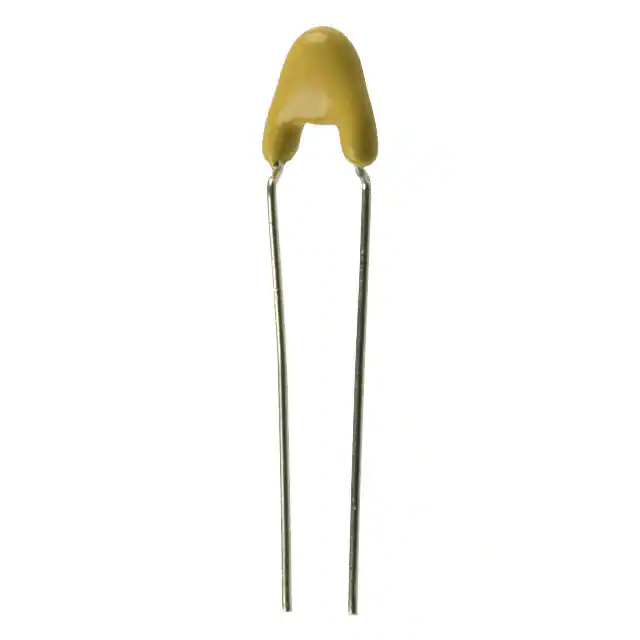

| Part Number | ECC-A3A120JGE | ECC-D3A120JGE | ECC-A3J120JGE | ECC-A3A150JGE | ECC-A3A180JGE | ECC-A3A220JGE | ECC-A3A820JGE | ECC-A3A121JGE | ECC-A3D120JGE | ECC-A3F120JGE |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 12 pF | 12 pF | 12 pF | 15 pF | 18 pF | 22 pF | 82 pF | 120 pF | 12 pF | 12 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 6000V (6kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 2000V (2kV) | 3000V (3kV) |
| Temperature Coefficient | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP | SL/GP |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.276" Dia (7.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.354" (9.00mm) | 0.433" (11.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Straight | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
