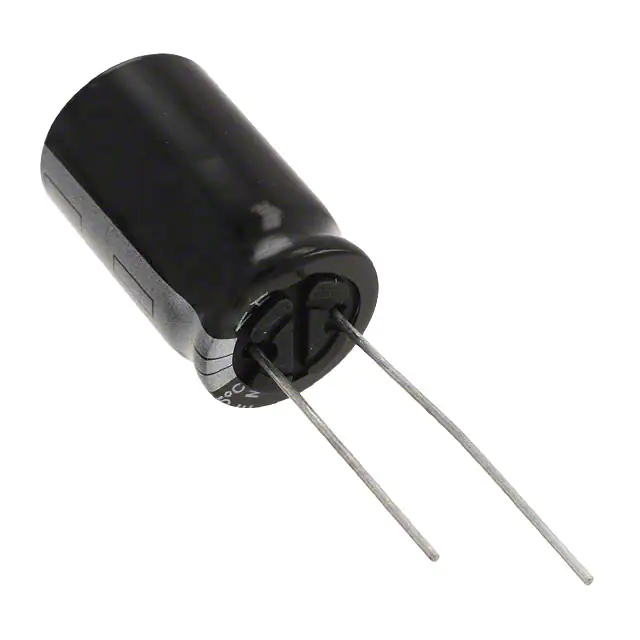

| Part Number | ECA-2CHG101 | ECA-2EHG101 | ECA-2DHG101 | ECA-2CHG101B | ECA-2AHG101 | ECA-2CHG100 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 250 V | 200 V | 160 V | 100 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | AEC-Q200 | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz | 365 mA @ 120 Hz | 335 mA @ 120 Hz | 70 mA @ 120 Hz | 265 mA @ 120 Hz | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 502.5 mA @ 100 kHz | 547.5 mA @ 100 kHz | 502.5 mA @ 100 kHz | 502.5 mA @ 100 kHz | 397.5 mA @ 100 kHz | 105 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.319" (33.50mm) | 1.063" (27.00mm) | 1.063" (27.00mm) | 0.866" (22.00mm) | 0.531" (13.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
