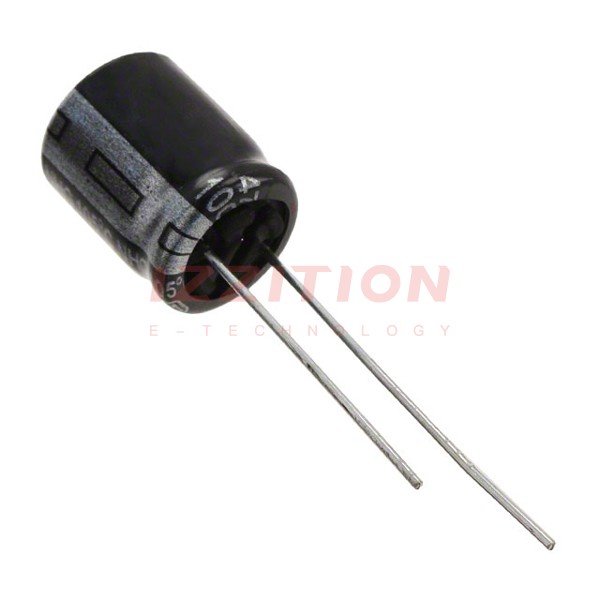

| Part Number | ECA-2CHG100 | ECA-2DHG100 | ECA-2EHG100 | ECA-2CHG101 | ECA-2AHG100 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 100 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 200 V | 250 V | 160 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz | 80 mA @ 120 Hz | 88 mA @ 120 Hz | 70 mA @ 120 Hz | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 105 mA @ 100 kHz | 120 mA @ 100 kHz | 132 mA @ 100 kHz | 502.5 mA @ 100 kHz | 108 mA @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.531" (13.50mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 1.063" (27.00mm) | 0.480" (12.20mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
