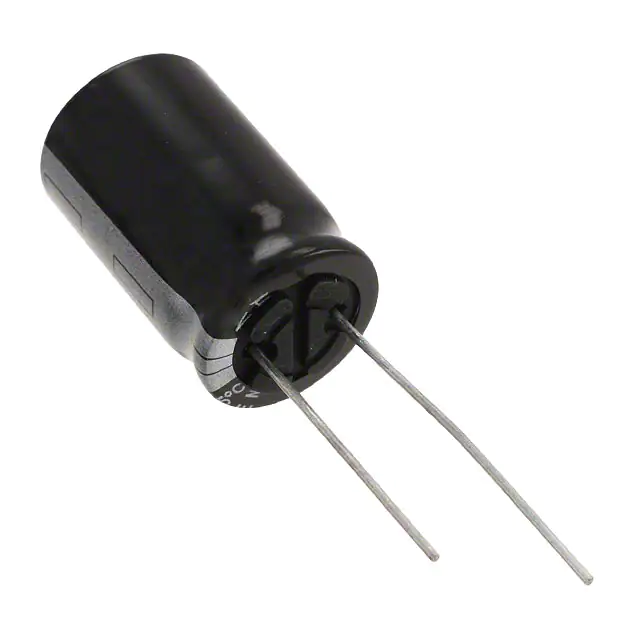

| Part Number | ECA-2AHG331 | ECA-2CHG331 | ECA-2AHG331B | ECA-2AHG330 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 160 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | AEC-Q200 | - |
| Applications | General Purpose | General Purpose | Automotive | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz | 705 mA @ 120 Hz | 540 mA @ 120 Hz | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 100 kHz | 1.058 A @ 100 kHz | 810 mA @ 100 kHz | 260 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.319" (33.50mm) | 1.063" (27.00mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
