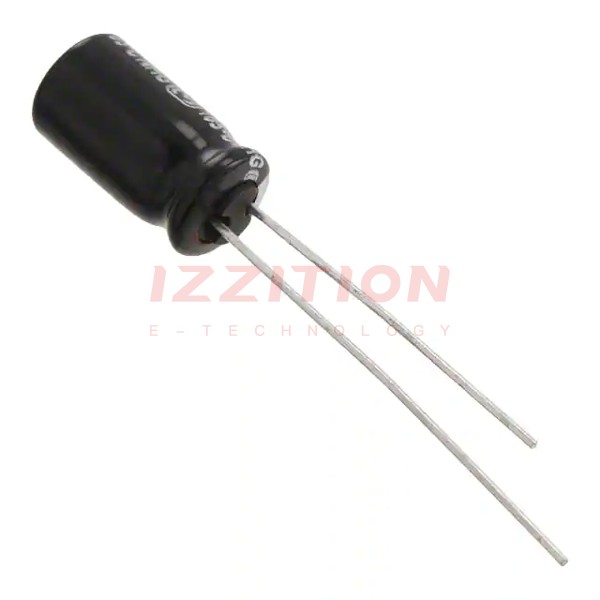

| Part Number | ECA-2AHG100 | ECA-2CHG100 | ECA-2AHG101 | ECA-2AHG100I | ECA-2AHG102 | ECA-2AHG100B | ECA-2AHG100C |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 100 µF | 10 µF | 1000 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 160 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz | 70 mA @ 120 Hz | 265 mA @ 120 Hz | 54 mA @ 120 Hz | 265 mA @ 120 Hz | 54 mA @ 120 Hz | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 108 mA @ 100 kHz | 105 mA @ 100 kHz | 397.5 mA @ 100 kHz | 81 mA @ 100 kHz | 1.33 A @ 100 kHz | 108 mA @ 100 kHz | 108 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.709" Dia (18.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.531" (13.50mm) | 0.866" (22.00mm) | 0.480" (12.20mm) | 1.476" (37.50mm) | 0.480" (12.20mm) | 0.480" (12.20mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
