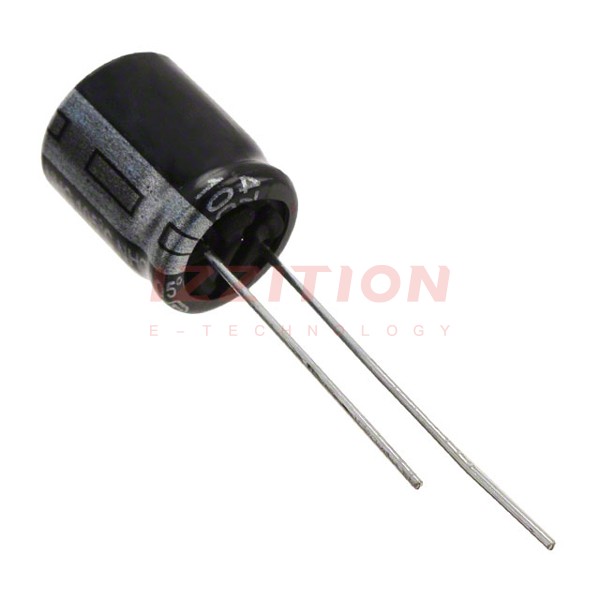

| Part Number | ECA-1HHG331I | ECA-1HHG330I | ECA-1HHG331 | ECA-1HHG331C |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 330 µF | 33 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | AEC-Q200 | - | AEC-Q200 |
| Applications | General Purpose | Automotive | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz | 90 mA @ 120 Hz | 410 mA @ 120 Hz | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz | 180 mA @ 100 kHz | 615 mA @ 100 kHz | 615 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.472" (12.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
