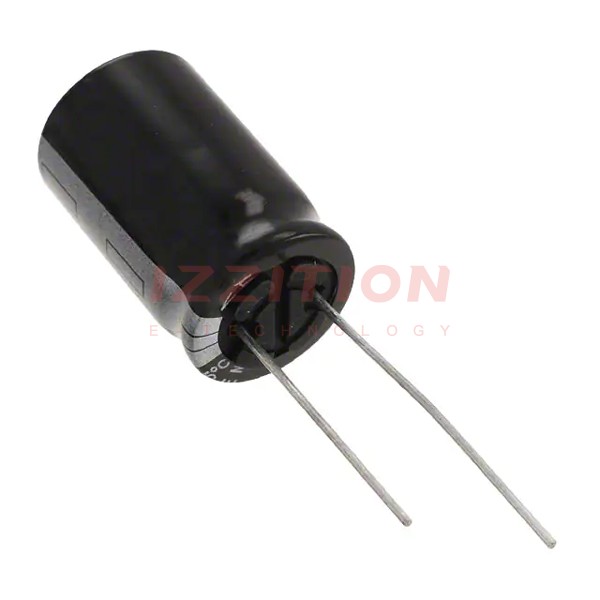

| Part Number | ECA-1HHG222 | ECA-1HHG2R2 | ECA-1JHG222 | ECA-1HHGR22 | ECA-1EHG222 | ECA-1HHG220 | ECA-1HHG221 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Capacitance | 2200 µF | 2.2 µF | 2200 µF | 0.22 µF | 2200 µF | 22 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 63 V | 50 V | 25 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.47 A @ 120 Hz | 18 mA @ 120 Hz | 1.61 A @ 120 Hz | 2.3 mA @ 120 Hz | 1.09 A @ 120 Hz | 65 mA @ 120 Hz | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.691 A @ 100 kHz | 36 mA @ 100 kHz | 1.852 A @ 100 kHz | 4.6 mA @ 100 kHz | 1.254 A @ 100 kHz | 130 mA @ 100 kHz | 450 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.079" (2.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.197" Dia (5.00mm) | 0.709" Dia (18.00mm) | 0.197" Dia (5.00mm) | 0.492" Dia (12.50mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) | 0.472" (12.00mm) | 1.476" (37.50mm) | 0.472" (12.00mm) | 1.063" (27.00mm) | 0.472" (12.00mm) | 0.531" (13.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
