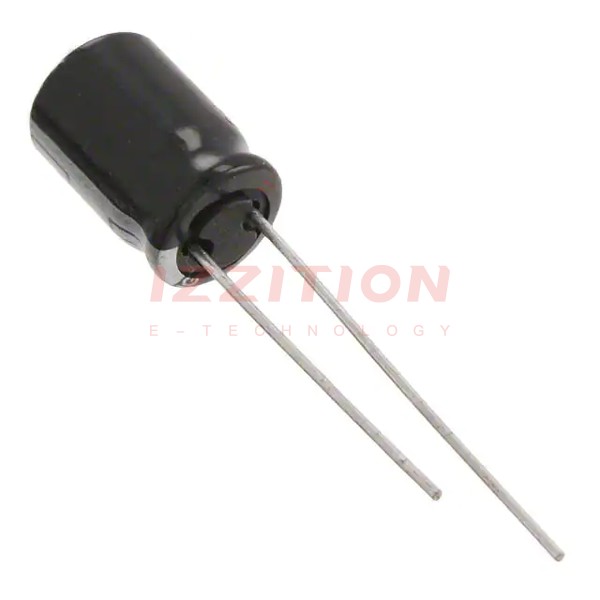

| Part Number | ECA-1EHG221BJ | ECA-1EHG221B |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 345 mA @ 100 kHz | 345 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
