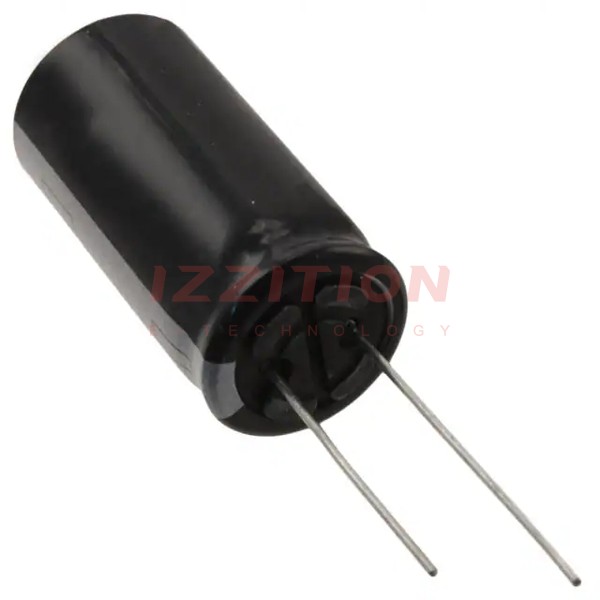

| Part Number | ECA-1CHG103 | ECA-1AHG103 | ECA-1CHG100 | ECA-1CHG101 | ECA-1CHG102 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10000 µF | 10000 µF | 10 µF | 100 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 10 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | - | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | AEC-Q200 | - | - |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.06 A @ 120 Hz | 1.89 A @ 120 Hz | - | 110 mA @ 120 Hz | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.369 A @ 100 kHz | 2.174 A @ 100 kHz | - | 165 mA @ 100 kHz | 644 mA @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | - | 0.079" (2.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | - | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 1.319" (33.50mm) | - | 0.472" (12.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
