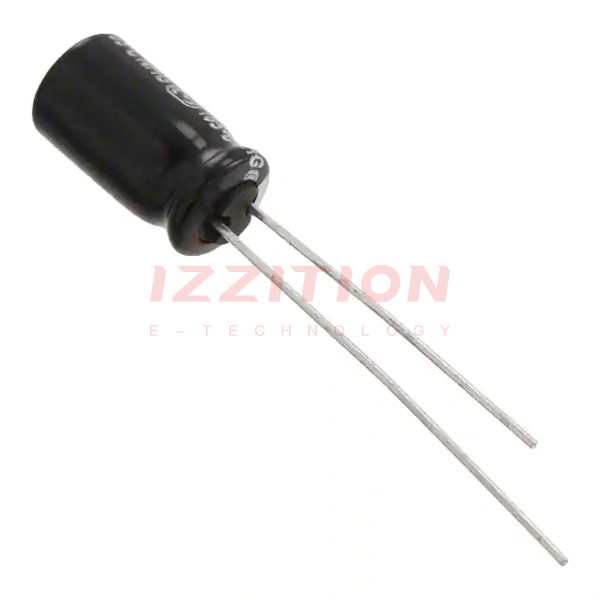

| Part Number | ECA-1AHG331I | ECA-1AHG331 | ECA-1AHG331B |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | - | - |
| Applications | Automotive | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz | 200 mA @ 120 Hz | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz | 300 mA @ 100 kHz | 300 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
