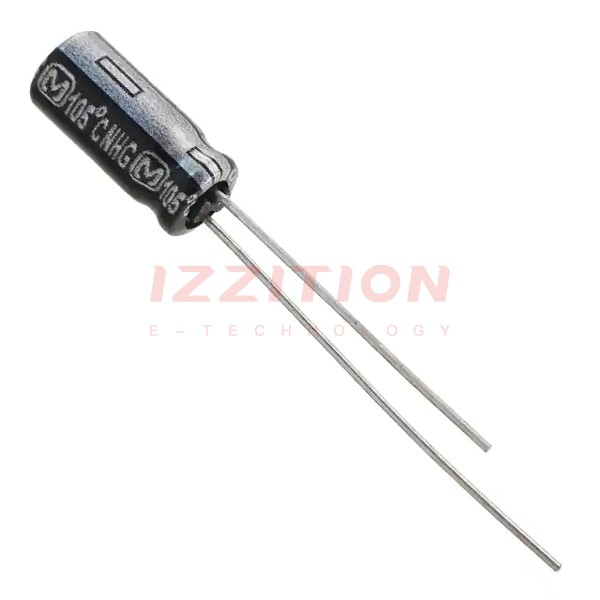

| Part Number | ECA-1AHG101 | ECA-1AHG103 | ECA-1CHG101 | ECA-1AHG102 | ECA-1AHG101I | ECA-1AHG101B |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 10000 µF | 100 µF | 1000 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 16 V | 10 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | - | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | AEC-Q200 | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | Automotive | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz | 1.89 A @ 120 Hz | 110 mA @ 120 Hz | 460 mA @ 120 Hz | - | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 100 kHz | 2.174 A @ 100 kHz | 165 mA @ 100 kHz | 529 mA @ 100 kHz | - | 165 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.079" (2.00mm) | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.630" Dia (16.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | - | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 1.319" (33.50mm) | 0.472" (12.00mm) | 0.531" (13.50mm) | - | 0.433" (11.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
