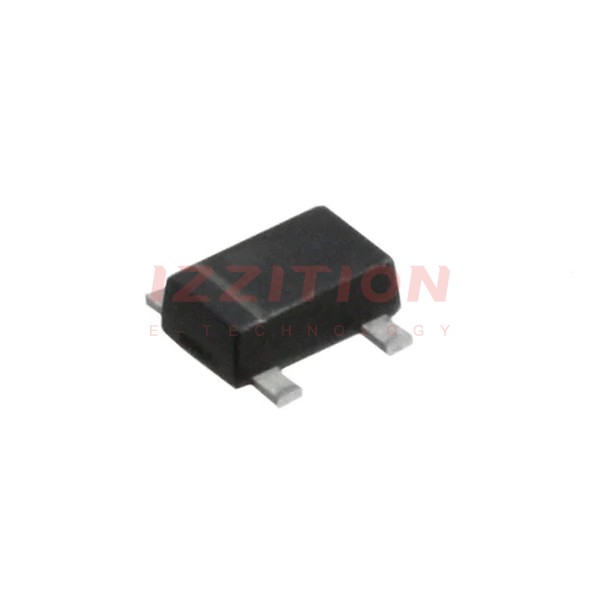

| Part Number | DZ4J330K0R | DZ4J360K0R | DZ4J390K0R | DZ4J030K0R | DZ4J130K0R | DZ4J300K0R |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Zener (Nom) (Vz) | 33 V | 36 V | 39 V | 3 V | 13 V | 30 V |
| Tolerance | - | ±5% | ±5% | - | - | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 200 Ohms | 250 Ohms | 300 Ohms | 120 Ohms | 35 Ohms | 160 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 25 V | 50 nA @ 27 V | 50 nA @ 30 V | 50 µA @ 1 V | 50 nA @ 10 V | 50 nA @ 23 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | - | - | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B |
