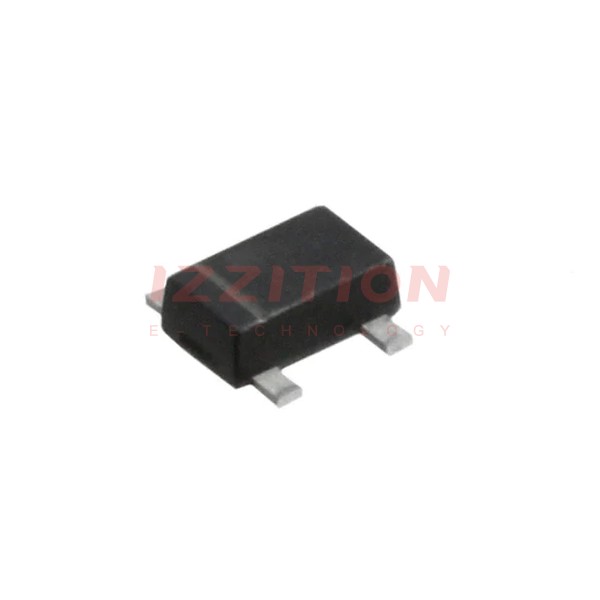

| Part Number | DZ4J200K0R | DZ4J270K0R | DZ4J220K0R | DZ4J240K0R | DZ4J300K0R | DZ4J100K0R |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Active | Obsolete | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Zener (Nom) (Vz) | 20 V | 27 V | 22 V | 24 V | 30 V | 10 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | - |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 80 Ohms | 120 Ohms | 80 Ohms | 100 Ohms | 160 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 15 V | 50 nA @ 21 V | 50 nA @ 17 V | 50 nA @ 19 V | 50 nA @ 23 V | 50 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B |
