| Part Number | DZ4J150K0R | DZ4J180K0R | DZ4J160K0R | DZ4J100K0R | DZ4J110K0R | DZ4J120K0R | DZ4J130K0R |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Obsolete |
| Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Zener (Nom) (Vz) | 15 V | 18 V | 16.05 V | 10 V | 11 V | 12 V | 13 V |
| Tolerance | - | - | ±5% | - | - | ±5% | - |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 40 Ohms | 60 Ohms | - | 30 Ohms | 30 Ohms | 30 Ohms | 35 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 11 V | 50 nA @ 13 V | 50 nA @ 12 V | 50 nA @ 7 V | 50 nA @ 8 V | 50 nA @ 9 V | 50 nA @ 10 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | - | - | -40°C ~ 85°C | - | - | -40°C ~ 85°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

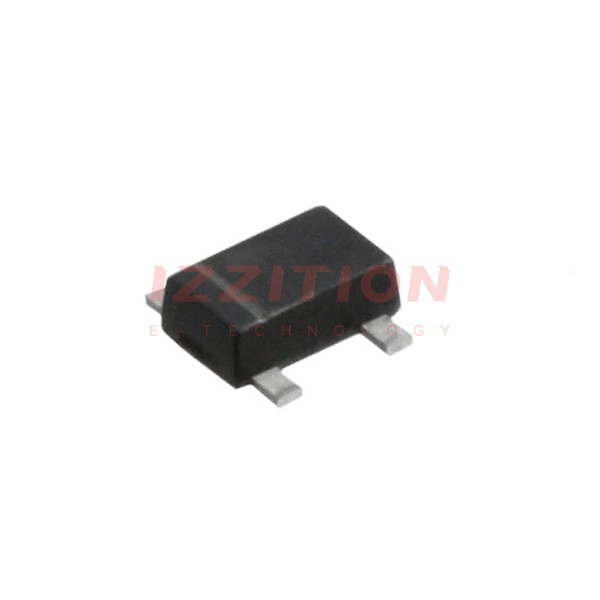

| Package / Case | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B | SMini4-F3-B |
