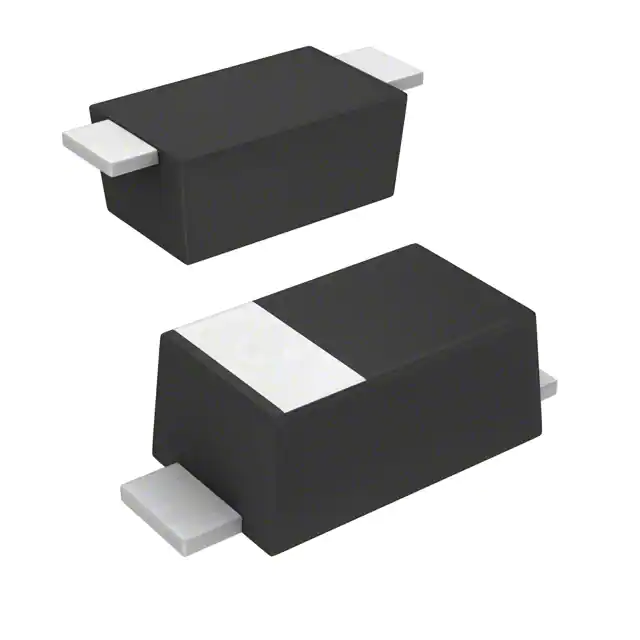

| Part Number | DZ2W20000L | DZ2W22000L | DZ2W30000L | DZ2W24000L | DZ2W27000L | DZ2J20000L | DZ2S20000L | DZ2W10000L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Voltage - Zener (Nom) (Vz) | 20 V | 22 V | 30 V | 24 V | 27 V | 20 V | 20 V | 10 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 200 mW | 150 mW | 1 W |
| Impedance (Max) (Zzt) | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 80 Ohms | 80 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 14 V | 10 µA @ 16 V | 10 µA @ 21 V | 10 µA @ 17 V | 10 µA @ 19 V | 50 nA @ 15 V | 50 nA @ 15 V | 10 µA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1.2 V @ 200 mA |
| Operating Temperature | - | - | - | - | -40°C ~ 85°C | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SC-90, SOD-323F | SC-79, SOD-523 | SOD-123F |
| Supplier Device Package | Mini2-F3-B | Mini2-F3-B | Mini2-F3-B | Mini2-F3-B | Mini2-F3-B | SMini2-F5-B | SSMini2-F5-B | Mini2-F3-B |
