Please send RFQ , we will respond immediately.

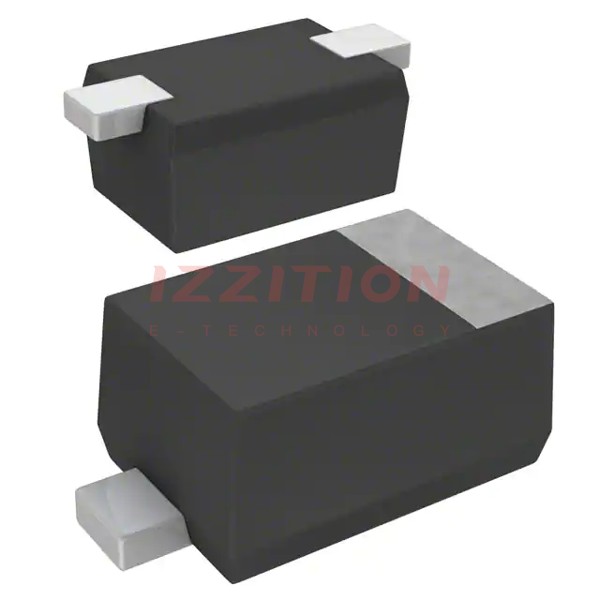

| Part Number | DZ2S16000L | DZ2S18000L | DZ2S160M0L | DZ2S36000L | DZ2W16000L | DZ2J16000L | DZ2S10000L | DZ2S11000L | DZ2S12000L | DZ2S13000L | DZ2S15000L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 16 V | 36 V | 16 V | 16 V | 10 V | 11 V | 12 V | 13 V | 15 V |
| Tolerance | ±5% | ±5% | ±2.5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 150 mW | 150 mW | 150 mW | 150 mW | 1 W | 200 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW |
| Impedance (Max) (Zzt) | 50 Ohms | 60 Ohms | 50 Ohms | 250 Ohms | 30 Ohms | 50 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 35 Ohms | 40 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 12 V | 50 nA @ 13 V | 50 nA @ 12 V | 50 nA @ 27 V | 10 µA @ 11 V | 50 nA @ 12 V | 50 nA @ 7 V | 50 nA @ 8 V | 50 nA @ 9 V | 50 nA @ 10 V | 50 nA @ 11 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1.2 V @ 200 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SOD-123F | SC-90, SOD-323F | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 |
| Supplier Device Package | SSMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B | Mini2-F3-B | SMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B | SSMini2-F5-B |
