Please send RFQ , we will respond immediately.

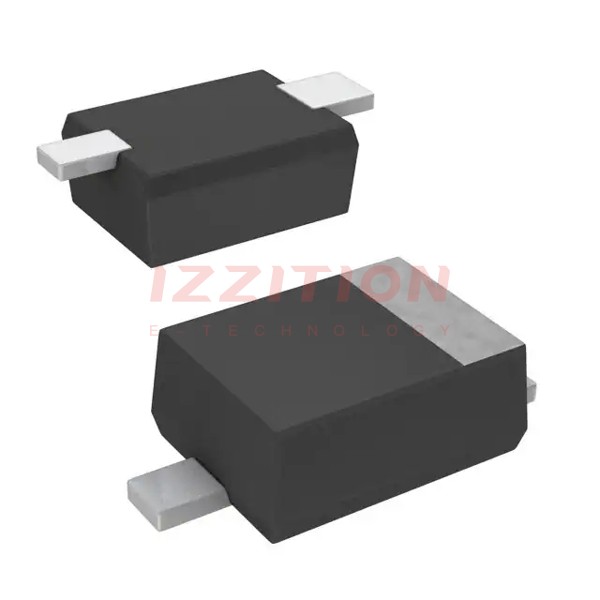

| Part Number | DZ2J22000L | DZ2J24000L | DZ2J27000L | DZ2J220M0L | DZ2W22000L | DZ2422000L | DZ2J12000L | DZ2J20000L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Voltage - Zener (Nom) (Vz) | 22 V | 24 V | 27 V | 22 V | 22 V | 22 V | 12 V | 20 V |
| Tolerance | ±5% | ±5% | ±5% | ±2.5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 1 W | 2 W | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 80 Ohms | 100 Ohms | 120 Ohms | 80 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 80 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 17 V | 50 nA @ 19 V | 50 nA @ 21 V | 50 nA @ 17 V | 10 µA @ 16 V | 10 µA @ 16 V | 50 nA @ 9 V | 50 nA @ 15 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SOD-123F | SOD-128 | SC-90, SOD-323F | SC-90, SOD-323F |
| Supplier Device Package | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B | Mini2-F3-B | TMiniP2-F2-B | SMini2-F5-B | SMini2-F5-B |
